TTLLS-Cable-Mec
627,00 €
All prices are excl. VAT

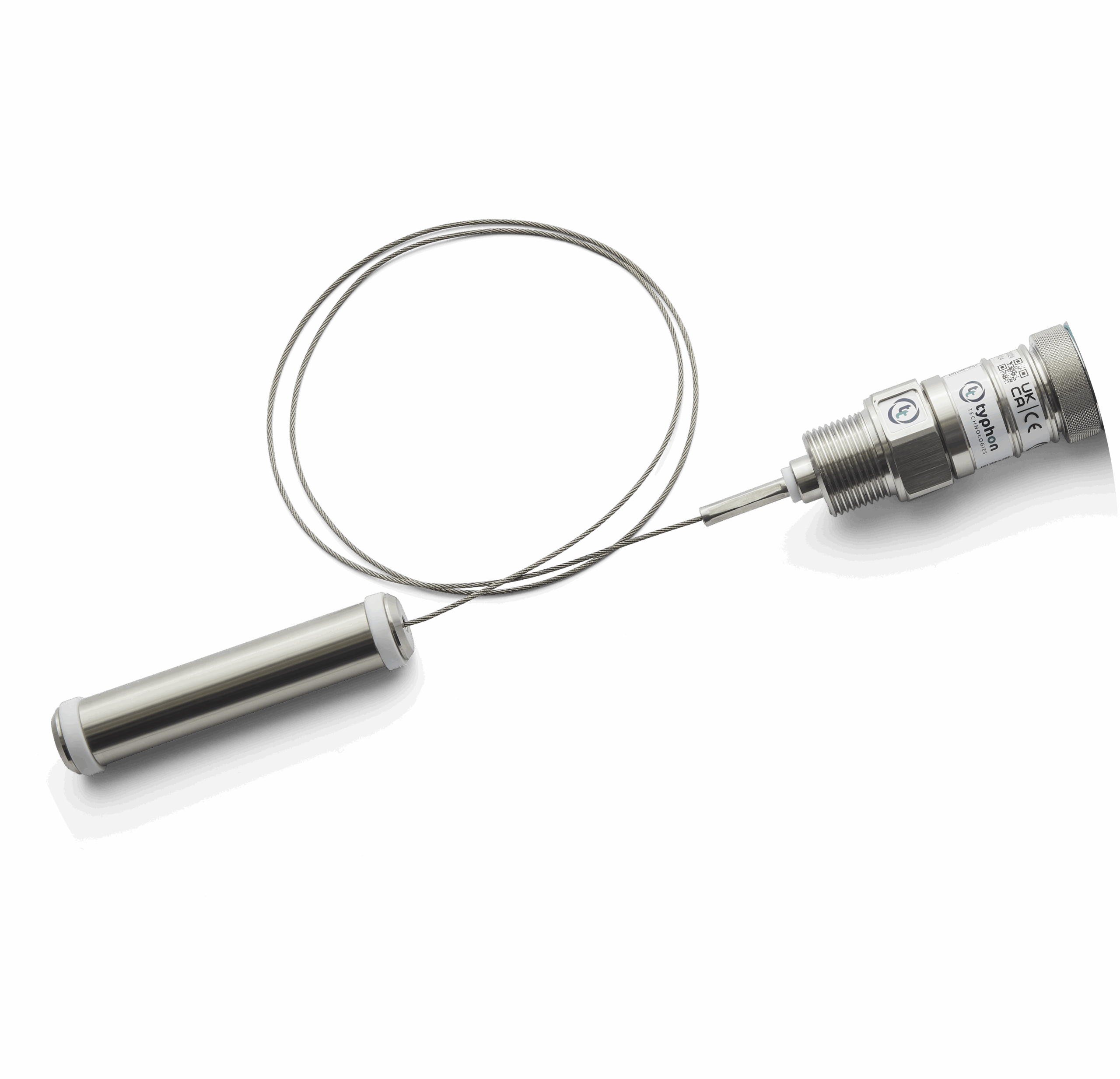

TTLLS-Cable-Mec – Spare part for TTLLS-Cable Liquid Level Sensor
The Typhon Technologies TTLLS-Cable-Mec is an mechanical spare part for the TTLLS-Cable Liquid Level Sensor.
Please see TTLLS-Cable for further details about the Liquid Level Sensor.
| General | |
| Dimension Insert (L x D) / Outside (L) | ( L) x Ø22 mm / 145mm L = 200-6000mm |
| Color | RGB: 80/115/119 |
| Material - Electronic | Nylon 6 PA / Stainless steel 304 / PTFE |
| Material - Mechanical | Stainless steel 304 / PTFE / PEEK |
| Power supply | External 24V AC/DC ±10%, 5 Plug IEC 61076-2 |
| Power consumption | Max 600mW with heater ON |
| Power Output Current | Maximum 1A |
| Galvanic Isolation | 1000 VAC |
| Thread Connection | ¾” BSPP, ¾” NPT |
| Environment | |
| Protection degree | IP66 |
| Ambient temperature | -40 to +60 °C |
| Compatible Refrigerant media | NH3/Water (Pure)/Alcohol HFC/HFO/CFC OIL CO2 |
| Refrigerant media Temperature | NH3: -60 to +110°C HFC/HFO/CFC: -60 to +110°C OIL: 0 to +150°C CO2: -55 to +30°C *Installation in standpipe from 1” to 4” |
| Max Pressure | 150 bar |
| Input | |
| Pin 3: mA input | Input mA: Remote set point 4-20mA / Resolution 0.002mA |
| Output | |
| Pin 4: mA output / Voltage output | Level Output: 4-20mA / 20-4mA / Resolution 0.001mA 1-5V |
| Pin 3: mA output / SSR Output Signal | control mA output / Alarm SSR Control signal 4-20mA / Resolution 0.001mA SSR Alarm (Source/Sink) (NO/NC) |
| Pin 5: Stop / Start Sensor | Voltage: 0V-24VDC |
| LED Matrix | Level 0-100% General service Information |
| LED Indication | 1 x Blue, 4 x Red, 1 x Green, 1 x Yellow |
| Wireless | |
| RF Link | Frequency: 868 MHz Protocol: TT-custom Sensitivity Typ.: -110 dBm Output power Typ.: +15 dBm |
| BLE | Protocol: 5.1 Sensitivity: -88 dBM Transmit power: +8 dBm |
| AR - Augmented Reality (coming) | Protocol: TT-Custom |
| APP Interface | TT SmartConfig App |
| Certifications | |
| Radio | Bluetooth |
| EMC | EN61000-3 |
| General | CE |
